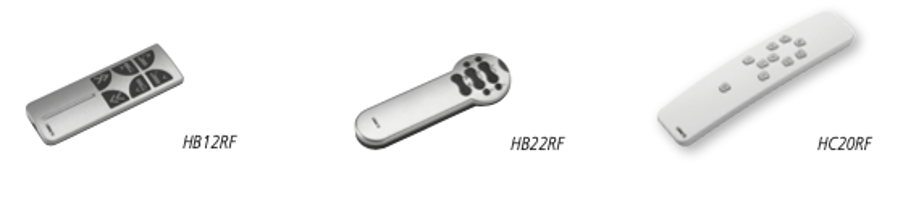

Pairing a TD3 with an infrared wireless remote HB22RF/HC20RF Linak Hand Control

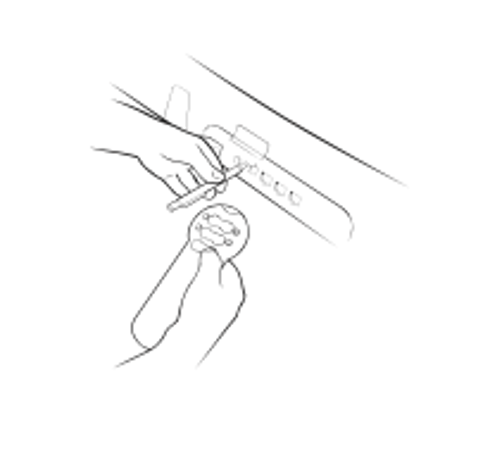

You will need a pen to be able to access the reset button on the TD3
If one or both functions are raised the system will go into an ordinary reset mode which will bring all functions to a completely flat position and another reset will then need to occur
Press and hold the reset button down to keep the reset active and at the same time press any random button on the infrared remote as the ID is stored in the memory settings
Once the above has been performed the reset button must be released
If no handset has been activated during the pairing process no changes are made in the ID memory of the TD3
If you have a TD3 and a wireless remote HC32BL/HC33BL
(please note Bluetooth dongle and wireless HC33BL will not operate a TD3 prior to 2016, you can find this information on the sticker on the TD3)
